Create WebDriver HTML Reports With The Allure Framework

cats and html reports



Allure framework can help with generating HTML reports for your Selenium WebDriver projects.

The reporting framework is very flexible and it works with many programming languages and unit testing frameworks.

You can read everything about it at http://allure.qatools.ru/.

JUNIT does not provide any HTML reports by default

If you use JUNIT for running your test automation scripts,everything that you get is a visual report of the test results.

This visual report is GREEN if all the test scripts pass and RED if at least one test script fails.



For each test script, the execution status (pass/fail) is displayed, together with the execution time and details of the error.

The problems with this visual report are that

  • it cannot be saved
  • the amount of information that it includes is very limited
  • it is not possible to see over time how the test scripts run

The Allure framework has solutions for all these problems

The reports that can be generated using Allure are very impressive.
You can get

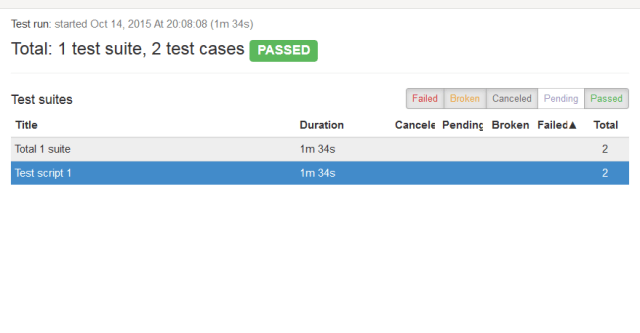

– an overview report for multiple test suites

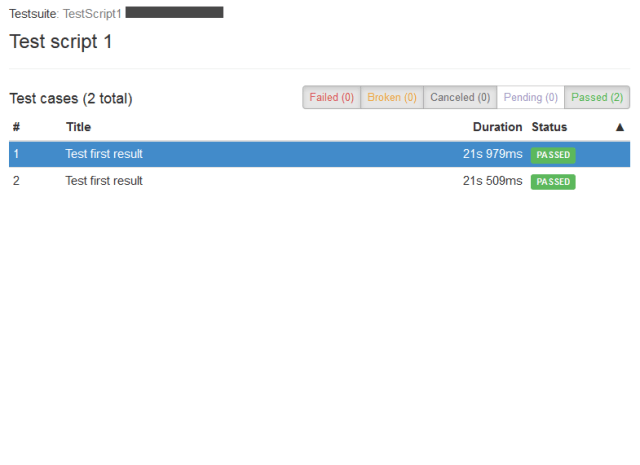

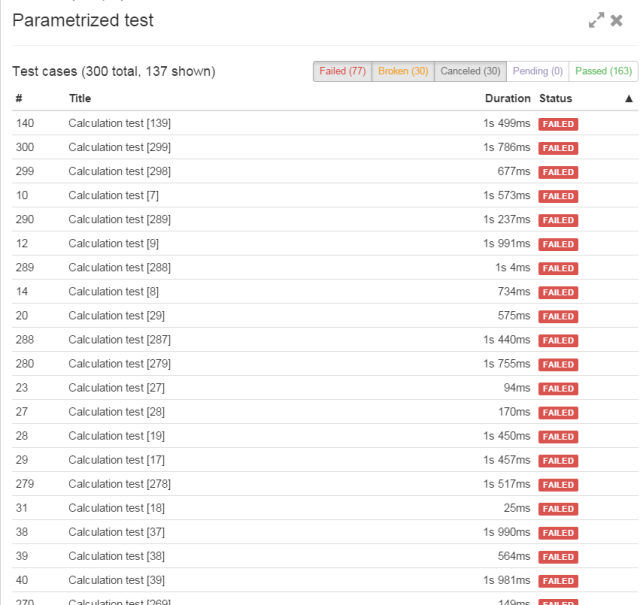

– detailed report for a test suite

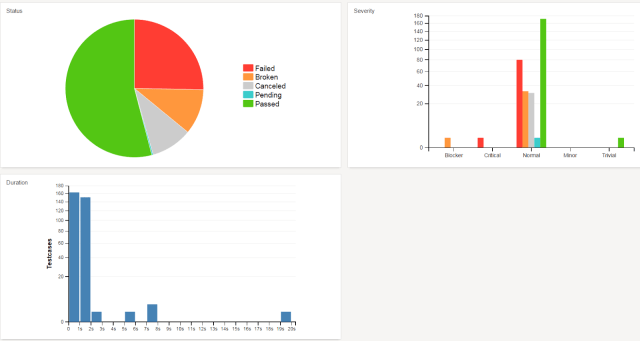

– graphical reports



See more report templates on this link:
http://ci.qatools.ru/job/allure-core_master-deploy/lastSuccessfulBuild/Allure_report/

How can you get these great reports for your WebDriver test scripts?

It is quite easy to add the Allure framework to your WebDriver project.



this is relevant



1. Create a Maven project in Eclipse

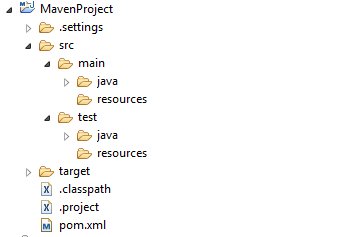

After creating the Maven project, the project structure will be as follows:







2. Add the class files to the proper folders



The page object classes should be in the Src/Main/Java folder.

The test script classes should go to the Test/Java folder.





3. Configure the POM xml file



The POM file is very straightforward:

<project xmlns=”http://maven.apache.org/POM/4.0.0&#8243; xmlns:xsi=”http://www.w3.org/2001/XMLSchema-instance&#8221; xsi:schemaLocation=”http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd”&gt;

<modelVersion>4.0.0</modelVersion>

<groupId>com.siminiuc</groupId>

<artifactId>MavenProject</artifactId>

<version>0.0.1</version>

<name>Maven Project</name>

<url>http://maven.apache.org</url&gt;

<dependencies>

     <dependency>

              <groupId>junit</groupId>

              <artifactId>junit</artifactId>

              <version>4.12</version>

              <scope>test</scope>

      </dependency>

     <dependency>

              <groupId>org.seleniumhq.selenium</groupId>

             <artifactId>selenium-firefox-driver</artifactId>

             <version>2.47.1</version>

     </dependency>

 </dependencies>

 <build>

      <plugins>

           <plugin>

               <groupId>org.apache.maven.plugins</groupId>

              <artifactId>maven-compiler-plugin</artifactId>

              <version>2.3.2</version>

              <configuration>

                     <fork>true</fork>

                     <source>1.7</source>

                     <target>1.7</target>

                     <executable>C:\JDK\bin\javac.exe</executable>

            </configuration>

        </plugin>

    </plugins>

</build>

</project>



It includes dependencies for JUNIT and Selenium Firefox driver and a plugin for the maven compiler.




selenium free course

4. Run the test scripts





Run the test scripts using maven test:

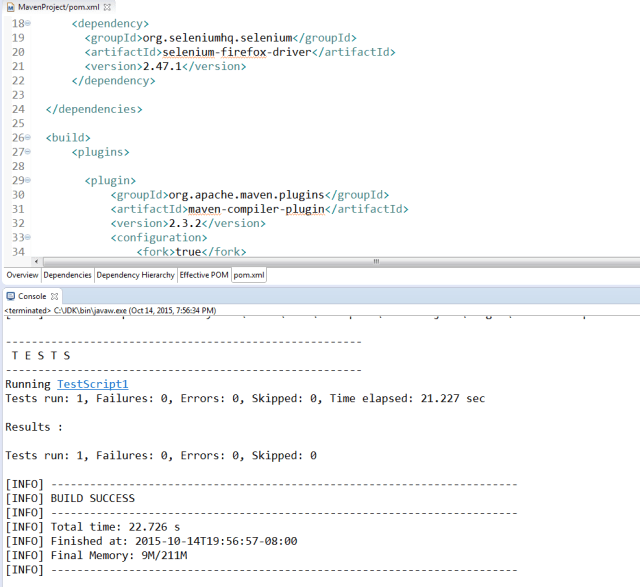

The execution results are displayed in the console tab:



5. Add Allure framework details to the POM file



The POM file changes a bit after adding the Allure details.

I have highlighted with italic all changes:

<project xmlns=”http://maven.apache.org/POM/4.0.0&#8243; xmlns:xsi=”http://www.w3.org/2001/XMLSchema-instance&#8221; xsi:schemaLocation=”http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd”&gt;

 <modelVersion>4.0.0</modelVersion>

 <groupId>com.siminiuc</groupId>

 <artifactId>MavenProject</artifactId>

 <version>0.0.1</version>

 <name>Maven Project</name>

 <url>http://maven.apache.org</url&gt;

 <properties>

         <aspectj.version>1.8.5</aspectj.version>

         <allure.version>1.4.11</allure.version>

 </properties>

 <dependencies>

        <dependency>

                 <groupId>junit</groupId>

                 <artifactId>junit</artifactId>

                 <version>4.12</version>

                 <scope>test</scope>

         </dependency>

         <dependency>

               <groupId>org.seleniumhq.selenium</groupId>

              <artifactId>selenium-firefox-driver</artifactId>

              <version>2.47.1</version>

        </dependency>

         <dependency>

               <groupId>ru.yandex.qatools.allure</groupId>

               <artifactId>allure-junit-adaptor</artifactId>

              <version>${allure.version}</version>

        </dependency>

</dependencies>



cat awake

<build>

      <plugins>

                   <plugin>

                          <groupId>org.apache.maven.plugins</groupId>

                          <artifactId>maven-compiler-plugin</artifactId>

                          <version>2.3.2</version>

                         <configuration>

                                 <fork>true</fork>

                                 <source>1.7</source>

                                 <target>1.7</target>

                                 <executable>C:\JDK\bin\javac.exe</executable>

                       </configuration>

               </plugin>

              <plugin>

                           <groupId>org.apache.maven.plugins</groupId>

                          <artifactId>maven-surefire-plugin</artifactId>

                         <version>2.14</version>

                        <configuration>

                                  <testFailureIgnore>false</testFailureIgnore>

                                  <argLine>

                                       –                   javaagent:${settings.localRepository}/org/aspectj/aspectjweaver/${aspectj.version}/aspectjweaver-${aspectj.version}.jar

                                 </argLine>

                                <properties>

                                     <property>

                                          <name>listener</name>

                                          <value>

                                                      ru.yandex.qatools.allure.junit.AllureRunListener

                                          </value>

                                   </property>

                               </properties>

                     </configuration>
                      <dependencies>

                             <dependency>

                                      <groupId>org.aspectj</groupId>

                                     <artifactId>aspectjweaver</artifactId>

                                     <version>${aspectj.version}</version>

                            </dependency>

                    </dependencies>

        </plugin>

        <plugin>

               <groupId>org.eclipse.jetty</groupId>

               <artifactId>jetty-maven-plugin</artifactId>

               <version>9.2.10.v20150310</version>

               <configuration>

                       <webAppSourceDirectory>

                           ${project.build.directory}/site/allure-maven-plugin

                      </webAppSourceDirectory>

                      <stopKey>stop</stopKey>

                      <stopPort>1234</stopPort>

            </configuration>

     </plugin>

  </plugins>

</build>

<reporting>

                <excludeDefaults>true</excludeDefaults>

                <plugins>

                      <plugin>

                              <groupId>ru.yandex.qatools.allure</groupId>

                              <artifactId>allure-maven-plugin</artifactId>

                              <version>2.0</version>

                      </plugin>

             </plugins>

</reporting>

</project>




selenium free course

6. Run the test scripts in Command Prompt







7. Generate the report by running mvn site in the Command Prompt

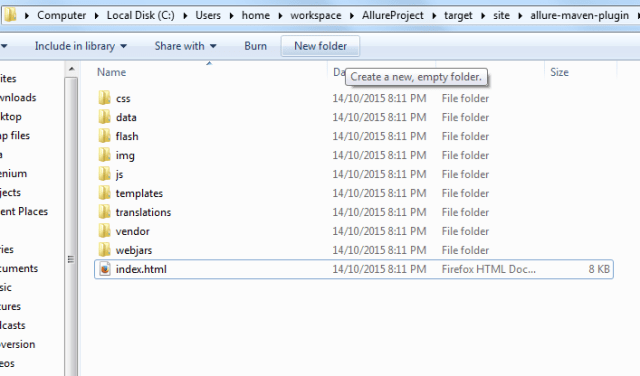

The Allure report can be found on the following location:
C:\Users\home\workspace\AllureProject\target\site\allure-maven-plugin





The report can be displayed in the browser by double-clicking the index.html file:


selenium free course
